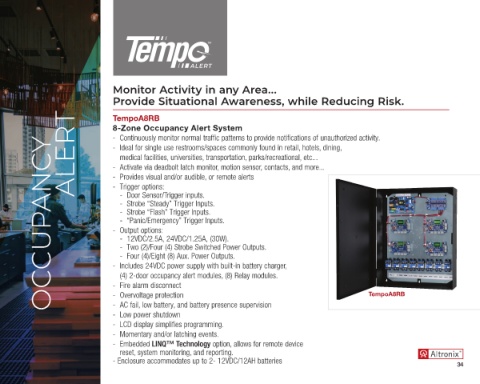

Page 34 - New Products Brochure

Monitor Activity in any Area...
Provide Situational Awareness, while Reducing Risk.

ALERT 8-Zone Occupancy Alert System
TempoA8RB
- Continuously monitor normal traffic patterns to provide notifications of unauthorized activity.
OCCUPANCY
- Ideal for single use restrooms/spaces commonly found in retail, hotels, dining,
medical facilities, universities, transportation, parks/recreational, etc...
- Activate via deadbolt latch monitor, motion sensor, contacts, and more...
- Provides visual and/or audible, or remote alerts
- Trigger options:
- Door Sensor/Trigger inputs.
- Strobe “Steady” Trigger Inputs.
- Strobe “Flash” Trigger Inputs.
- “Panic/Emergency” Trigger Inputs.
- Output options:
- 12VDC/2.5A, 24VDC/1.25A, (30W).
- Two (2)/Four (4) Strobe Switched Power Outputs.
- Four (4)/Eight (8) Aux. Power Outputs.
- Includes 24VDC power supply with built-in battery charger,
(4) 2-door occupancy alert modules, (8) Relay modules.
- Fire alarm disconnect
- Overvoltage protection TempoA8RB
- AC fail, low battery, and battery presence supervision
- Low power shutdown
- LCD display simplifies programming.
- Momentary and/or latching events.
- Embedded LINQ™ Technology option, allows for remote device
reset, system monitoring, and reporting.
- Enclosure accommodates up to 2- 12VDC/12AH batteries
