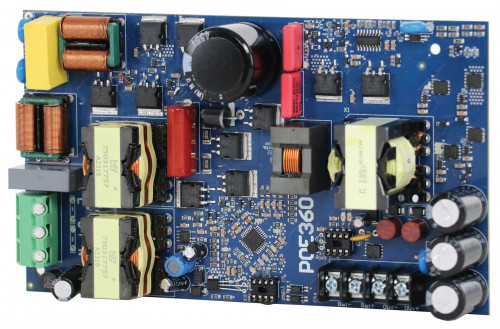

POE360

54VDC/360W Power Supply/Charger Board

Altronix POE360 provides 360W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50/60Hz input into a 56VDC at 6.4A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries.

Specifications

  • Input
    • Voltage: 115VAC, 60 Hz, 3.5A or 230VAC, 50/60 Hz, 2A.
    • Input Fuse: 5A/250V
  • Output
    • Voltage Range: 54VDC/360W
    • Current: 6.4A continuous supply current
    • Maximum Power: 360W total power (refer to operating temperature) Integral surge protection
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • Charging Circuit: 0.75A
    • (Batteries are sold separately).
  • Temperature
      • Operating Temperature:
        • 360W: – 30ºC to 65ºC (– 22ºF to 149F).
        • 240W: – 30ºC to 70ºC (– 22ºF to 158ºF).
    • Storage Temperature: – 30ºC to 85ºC (– 22ºF to 185ºF).
    • Relative Humidity: 85% +/–5%.
    • BTU/Hr. (approx.): 184 BTU/Hr.

Dimensions & Weight

Dimensions (approximate):
  • 7.75"W x 4.5"L x 1.375"H (196.9 mm W x 114.3 mm L x 34.9 mm H).
Weights (approximate):
  • Product Weigtht: 1.23 Lbs. (0.56 kg).
  • Shipping Weigtht: 1.5 Lbs. (0.68 kg).
